一、FTP介绍

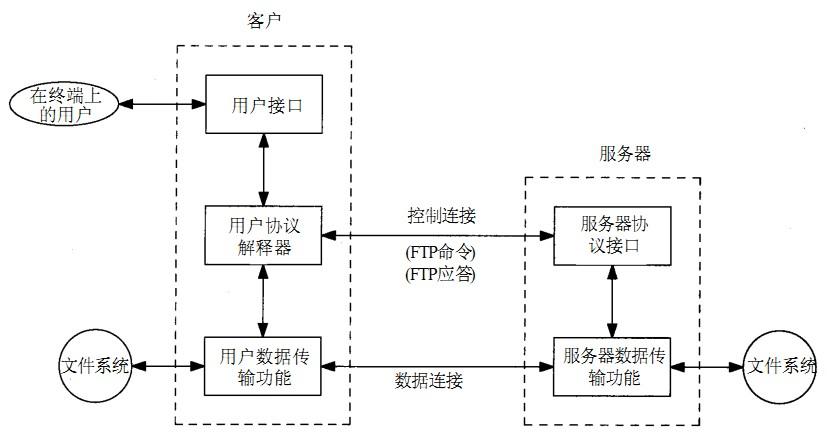

FTP（FileTransferProtocol，文件传输合同）是TCP/IP合同组中的合同之一。FTP合同包括两个组成部份国内linux主机，其二为FTP服务器，其一为FTP顾客端。默认情况下FTP合同使用TCP端口中的20和21这两个端口，其中20用于传输数据，21用于传输控制信息。并且linux ftp服务器软件，是否使用20作为传输数据的端口与FTP使用的传输模式有关linux开发培训，假若采用主动模式，这么数据传输端口就是20；假若采用被动模式，则具体最终使用那个端口要服务器端和顾客端协商决定。
二、环境介绍
FTP服务端：hostname为controlIP：192.168.200.150
FTP顾客端：hostname为node1IP：192.168.200.135
三、FTP服务端搭建步骤1.安装相关软件包
[root@control ~]# yum -y install ftp.x86_64
Updating Subscription Management repositories.
Unable to read consumer identity
This system is not registered to Red Hat Subscription Management. You can use subscription-manager to register.
Last metadata expiration check: 0:01:45 ago on Tue 11 May 2021 06:57:05 PM CST.
Dependencies resolved.
====================================================================================================================================================================
Package Arch Version Repository Size
====================================================================================================================================================================
Installing:
ftp x86_64 0.17-78.el8 AppStream 70 k
Transaction Summary
====================================================================================================================================================================
Install 1 Package
Total size: 70 k
Installed size: 112 k
Downloading Packages:
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : ftp-0.17-78.el8.x86_64 1/1
Running scriptlet: ftp-0.17-78.el8.x86_64 1/1
Verifying : ftp-0.17-78.el8.x86_64 1/1
Installed products updated.
Installed:
ftp-0.17-78.el8.x86_64
Complete!
2.启动FTP并检测状态
[root@control ~]# systemctl enable --now vsftpd
Created symlink /etc/systemd/system/multi-user.target.wants/vsftpd.service → /usr/lib/systemd/system/vsftpd.service.
[root@control ~]# systemctl status vsftpd
● vsftpd.service - Vsftpd ftp daemon
Loaded: loaded (/usr/lib/systemd/system/vsftpd.service; enabled; vendor preset: disabled)
Active: active (running) since Tue 2021-05-11 18:59:51 CST; 9s ago
Process: 2825 ExecStart=/usr/sbin/vsftpd /etc/vsftpd/vsftpd.conf (code=exited, status=0/SUCCESS)
Main PID: 2826 (vsftpd)
Tasks: 1 (limit: 24900)
Memory: 864.0K
CGroup: /system.slice/vsftpd.service
└─2826 /usr/sbin/vsftpd /etc/vsftpd/vsftpd.conf
May 11 18:59:51 control systemd[1]: Starting Vsftpd ftp daemon...
May 11 18:59:51 control systemd[1]: Started Vsftpd ftp daemon.
3.检测服务端口运行状态
[root@control mail]# netstat -antup | grep ftp
tcp6 0 0 :::21 :::* LISTEN 2826/vsftpd 4.更改FTP配置文件
anonymous_enable=YES
local_enable=YES
write_enable=YES
local_umask=022
anon_upload_enable=YES
anon_mkdir_write_enable=YES
dirmessage_enable=YES
xferlog_enable=YES
connect_from_port_20=YES
xferlog_std_format=YES
listen=YES
listen_ipv6=NO
pam_service_name=vsftpd
userlist_enable=YES
5.关掉selinux及防火墙
sed -i 's/SELINUX=enforcing/SELIUNUX=disabled/' /etc/selinux/config
systemctl stop firewalld.service备注：
防火墙假如要开启linux ftp服务器软件，则可开启以下端口：
firewall-cmd --zone=public --add-port=20/tcp --permanent
firewall-cmd --zone=public --add-port=21/tcp --permanent
firewall-cmd --zone=public --add-port=22/tcp --permanent
firewall-cmd --zone=public --add-port=30000-35000/tcp --permanent三、客户端操作1.安装软件包
[root@node1 ~]# yum -y install lftp
Updating Subscription Management repositories.
Unable to read consumer identity
This system is not registered to Red Hat Subscription Management. You can use subscription-manager to register.
Repository AppStream is listed more than once in the configuration
Repository BaseOS is listed more than once in the configuration
ansiable 0.0 B/s | 0 B 00:00
Failed to synchronize cache for repo 'ansiable', ignoring this repo.
Last metadata expiration check: 0:00:17 ago on Tue 11 May 2021 07:04:23 PM CST.
Dependencies resolved.
====================================================================================================================================================================
Package Arch Version Repository Size
====================================================================================================================================================================
Installing:
lftp x86_64 4.8.4-1.el8 AppStream 885 k
Transaction Summary
====================================================================================================================================================================
Install 1 Package
Total size: 885 k
Installed size: 3.0 M
Downloading Packages:
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : lftp-4.8.4-1.el8.x86_64 1/1
Running scriptlet: lftp-4.8.4-1.el8.x86_64 1/1
Verifying : lftp-4.8.4-1.el8.x86_64 1/1
Installed products updated.
Installed:
lftp-4.8.4-1.el8.x86_64
Complete!
2.查看顾客端状态
[root@node1 ~]# ps -ef |grep ftp
root 1746 1745 0 18:56 ? 00:00:00 /usr/libexec/openssh/sftp-server
四.顾客端测试登入情况1.使用顾客端本地帐号user1登陆
lftp 192.168.200.150:~> pwd
ftp://192.168.200.150
lftp 192.168.200.150:~> user user1
Password:
lftp user1@192.168.200.150:~> ls
-rw-r--r-- 1 0 0 3541 May 11 13:08 passwd
lftp user1@192.168.200.150:~> pwd
ftp://user1@192.168.200.150/%2Fhome/user1
2.测试上传下载文件
[root@node1 ~]# lftp 192.168.200.150
lftp 192.168.200.150:~> user user1
Password:
lftp user1@192.168.200.150:~> ls
-rw-r--r-- 1 0 0 3541 May 11 13:08 passwd
lftp user1@192.168.200.150:~> lcd /etc
lcd ok, local cwd=/etc
lftp user1@192.168.200.150:~> put group
1154 bytes transferred
lftp user1@192.168.200.150:~> get passwd
get: /etc/passwd: file already exists and xfer:clobber is unset
